Standard Product Features
18 GA. Welded Galvanized Steel Construction
8” & 12” Standard Height (H)
2” X 2” Wood Nailer
Welded Corner Seams
3/4” Plywood Top
1.5” X 3 LB Density Rigid Insulation
18 ga. Cover Over Plywood
Optional Product Features
Aluminum or Stainless Steel Construction
10-16 GA. Material Construction
Custom Heights (H)
Pitched Roof Styles
Burglar Bars 1/2” Round on 6” Centers
Neoprene Gasket 1.5” X 1/4
Pipe Sleeve Assembly
Solid or Perforated Interior Wall
Insulated Cap
18 GA. Welded Galvanized Steel Construction
8” & 12” Standard Height (H)
2” X 2” Wood Nailer
Welded Corner Seams
3/4” Plywood Top
1.5” X 3 LB Density Rigid Insulation
18 ga. Cover Over Plywood
Aluminum or Stainless Steel Construction
10-16 GA. Material Construction
Custom Heights (H)
Pitched Roof Styles
Burglar Bars 1/2” Round on 6” Centers
Neoprene Gasket 1.5” X 1/4
Pipe Sleeve Assembly
Solid or Perforated Interior Wall
Insulated Cap
Designed and Powered by Media Depot

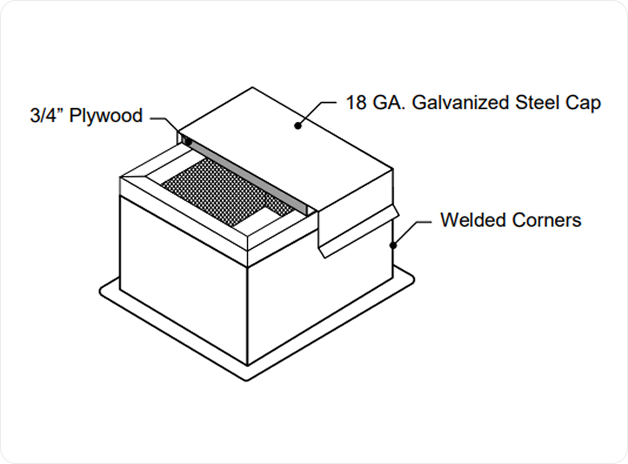

Please be advised that the purpose of this submittal is to exhibit the overall dimensions of this product. Pictures and drawings do not give entire detail of product and are not portrayed to scale. Tole Manufacturing reserves the right to alter this submittal without notification.
