Standard Product Features
18 GA. Welded Galvanized Steel Construction

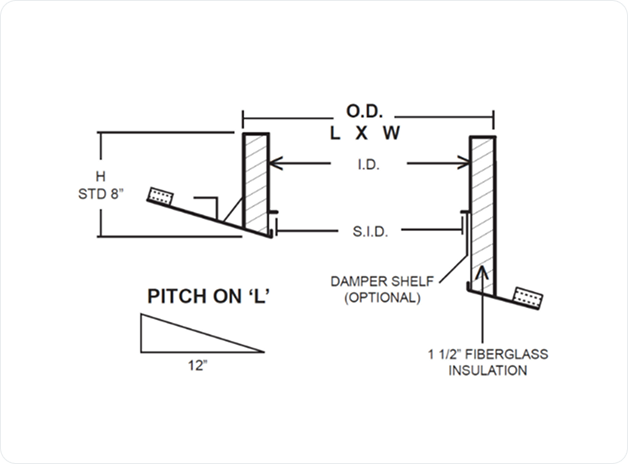

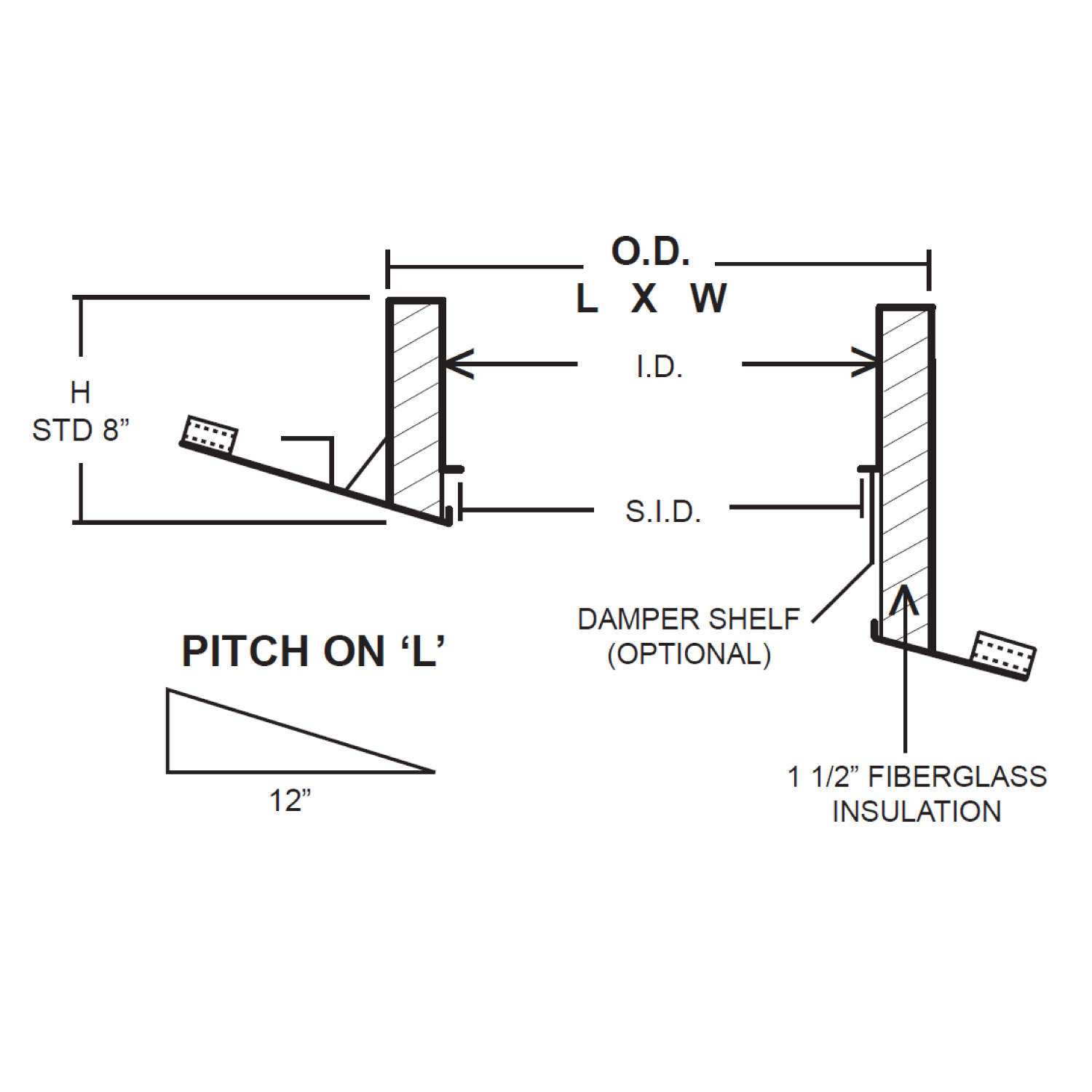

1 1/2” X 3lb Density Fiberglass Insulation
8” Standard Height
Built-In Cricket
Welded Corner Seams
Neoprene Gasket 1.5” X 1/4”
Rib Conforming Notches
Optional Product Features

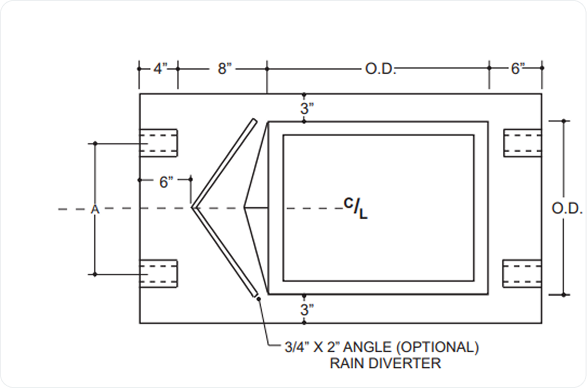

Rain Diverter 3/4” X 2”
Additional Height
Uninsulated
Aluminum Construction
Additional Reinforcement Based on Size
18 GA. Welded Galvanized Steel Construction
1 1/2” X 3lb Density Fiberglass Insulation
8” Standard Height
Built-In Cricket
Welded Corner Seams
Neoprene Gasket 1.5” X 1/4”
Rib Conforming Notches
Rain Diverter 3/4” X 2”
Additional Height
Uninsulated
Aluminum Construction
Additional Reinforcement Based on Size
Designed and Powered by Media Depot
Please be advised that the purpose of this submittal is to exhibit the overall dimensions of this product. Pictures and drawings do not give entire detail of product and are not portrayed to scale. Tole Manufacturing reserves the right to alter this submittal without notification.
