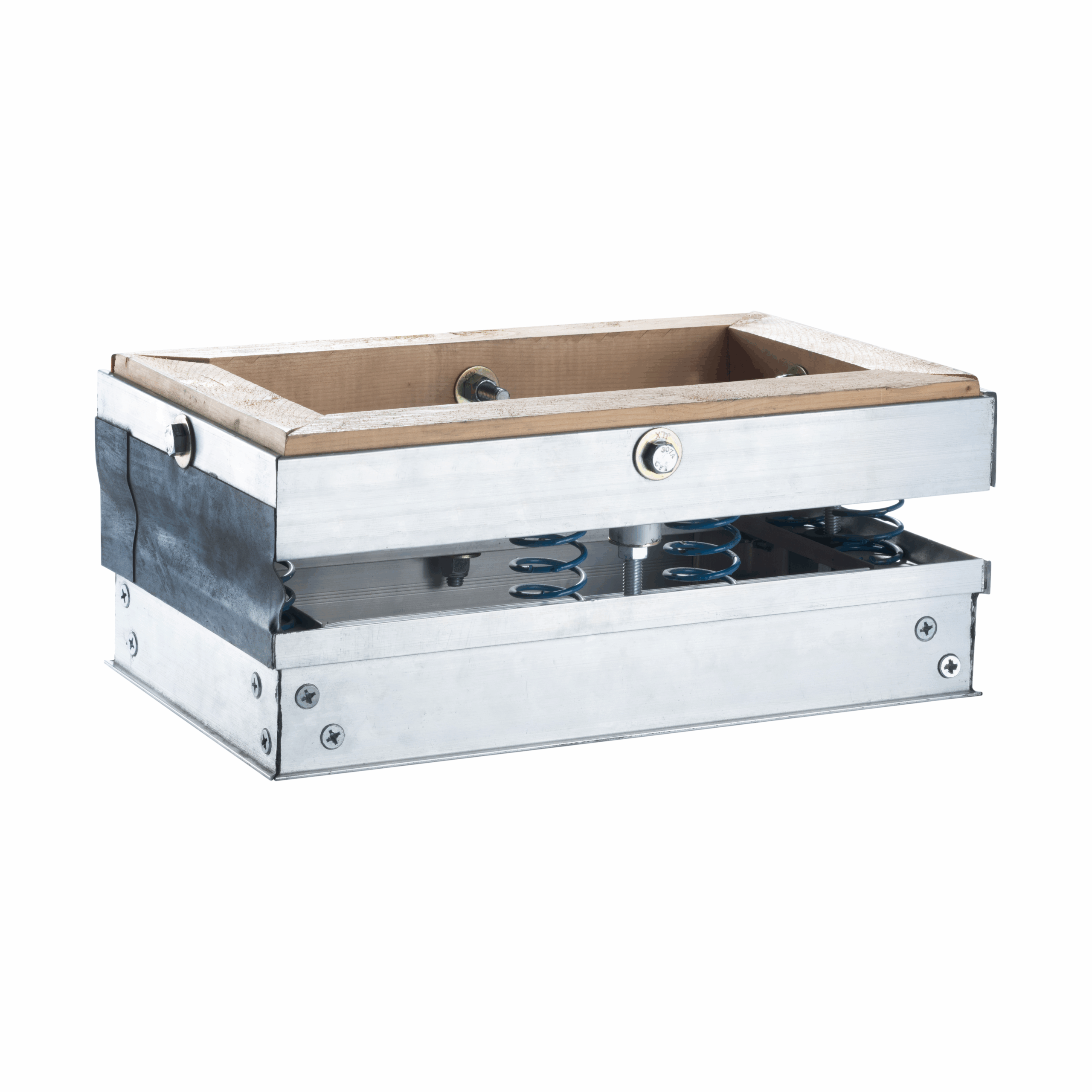

Standard Product Features
18 GA. Welded Galvanized Steel Construction Wall
8” & 12” Standard Height (H)
2” X 2” Wood Nailer
Welded Corner Seams
1.5” X 3 LB Density Rigid Insulation
Optional Product Features
10-18 GA. Steel Construction
1”, 2”, or 3” Static Deflection
Field Spring Adjustment
Neoprene Gasket
Rail Unit Shipped Assembled and Ready to Mount
18 GA. Welded Galvanized Steel Construction Wall
8” & 12” Standard Height (H)
2” X 2” Wood Nailer
Welded Corner Seams
1.5” X 3 LB Density Rigid Insulation
10-18 GA. Steel Construction
1”, 2”, or 3” Static Deflection
Field Spring Adjustment
Neoprene Gasket
Rail Unit Shipped Assembled and Ready to Mount
Designed and Powered by Media Depot
Please be advised that the purpose of this submittal is to exhibit the overall dimensions of this product. Pictures and drawings do not give entire detail of product and are not portrayed to scale. Tole Manufacturing reserves the right to alter this submittal without notification.
