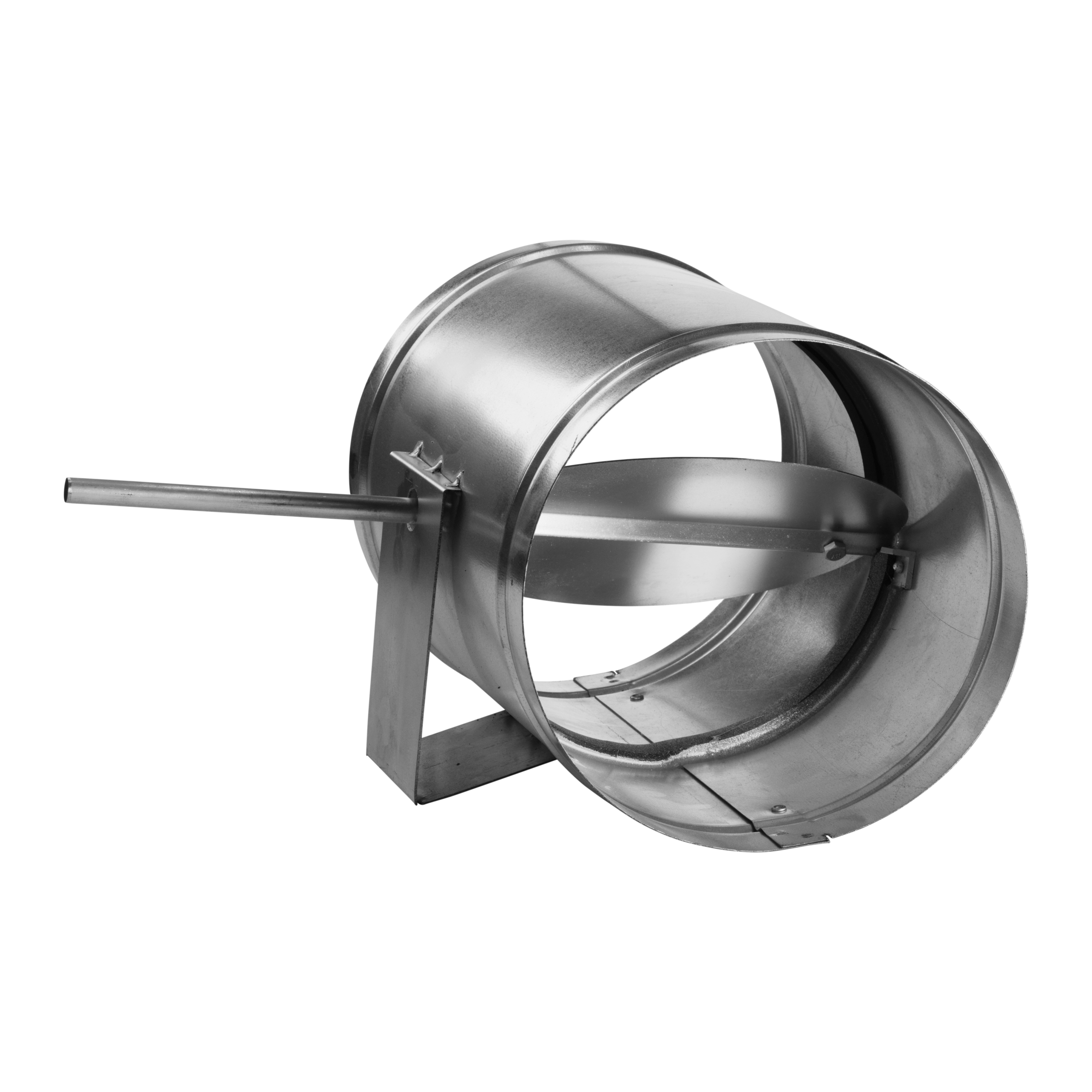

Standard Product Features
Frame:
Galvanized steel roll formed with double bead for connection rigidity.
Blade:

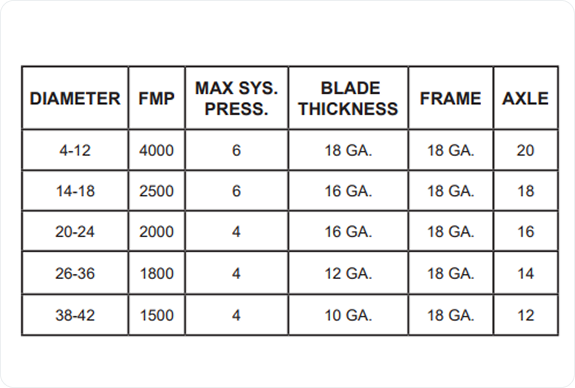

Galvanized steel smooth with “V” shape center for control shaft, see chart for specs
Seal:
Close cell neoprene with sealant.
Axle:
Extends 6” past damper frame, see chart for specs.
Bearing:
Celcon bushing 4-18” RD, oil impregnated bronze bearing 20-42” RD.
Mounting Side Plate:
18 GA. GALV. 4-18” RD, 4GA. 20-42” RD.
Optional Product Features
Perimeter Frame - 2¹⁄2 x ¹/4 Flat Stock Steel
Horizontal - Vertical Bars - 1/2 Diameter Round on 6” Centers
All welded Construction
Minimum Size - 6”x6”
Painted Black
Factory Tolerance ± ¹⁄16”
Frame:
Galvanized steel roll formed with double bead for connection rigidity.
Blade:
Galvanized steel smooth with “V” shape center for control shaft, see chart for specs
Seal:
Close cell neoprene with sealant.
Axle:
Extends 6” past damper frame, see chart for specs.
Bearing:
Celcon bushing 4-18” RD, oil impregnated bronze bearing 20-42” RD.
Mounting Side Plate:
18 GA. GALV. 4-18” RD, 4GA. 20-42” RD.
Perimeter Frame - 2¹⁄2 x ¹/4 Flat Stock Steel
Horizontal - Vertical Bars - 1/2 Diameter Round on 6” Centers
All welded Construction
Minimum Size - 6”x6”
Painted Black
Factory Tolerance ± ¹⁄16”
Designed and Powered by Media Depot

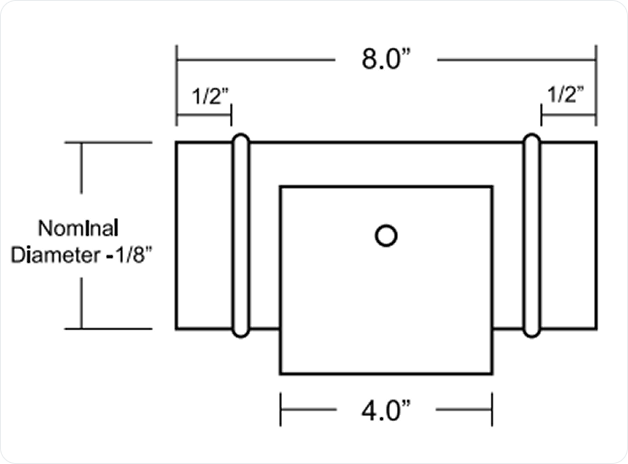

Please be advised that the purpose of this submittal is to exhibit the overall dimensions of this product. Pictures and drawings do not give entire detail of product and are not portrayed to scale. Tole Manufacturing reserves the right to alter this submittal without notification.
