Standard Product Features

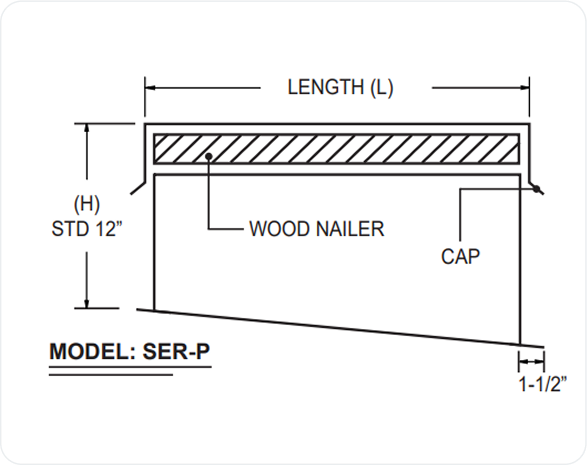

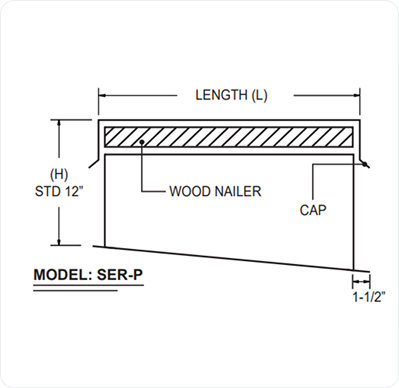

18ga. Galvanized Metal - Welded Construction
8” and 12” Standard Height (H)
Patented Interior Bulkhead Reinforcement
2” x 4” Wood Nailer
Welded Corner Seams
Stock Lengths 2’, 3’, 4’, 5’, 6’, 8’, and 10’

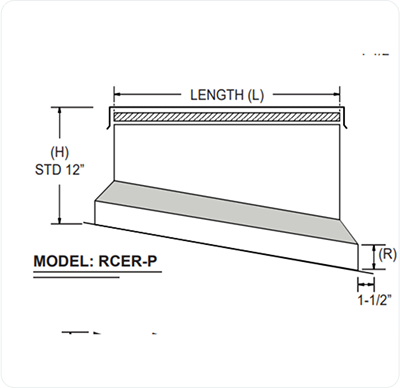

Raised Cant (R) = 1” - 6”
Optional Product Features
Aluminum or stainless steel construction
Heavier material gauges (10-16 GA.)
Wood Nailers in Widths (W) up to 2” x 12”
Chemically Treated Wood Nailers
Unit Lengths up to 24 Feet
Custom Heights (H)
Nailer Bracket
Pipe Support Channel - Versabar
18ga. Galvanized Metal - Welded Construction
8” and 12” Standard Height (H)
Patented Interior Bulkhead Reinforcement
2” x 4” Wood Nailer
Welded Corner Seams
Stock Lengths 2’, 3’, 4’, 5’, 6’, 8’, and 10’
Raised Cant (R) = 1” - 6”
Aluminum or stainless steel construction
Heavier material gauges (10-16 GA.)
Wood Nailers in Widths (W) up to 2” x 12”
Chemically Treated Wood Nailers
Unit Lengths up to 24 Feet
Custom Heights (H)
Nailer Bracket
Pipe Support Channel - Versabar
Designed and Powered by Media Depot
Please be advised that the purpose of this submittal is to exhibit the overall dimensions of this product. Pictures and drawings do not give entire detail of product and are not portrayed to scale. Tole Manufacturing reserves the right to alter this submittal without notification.
