Standard Product Features

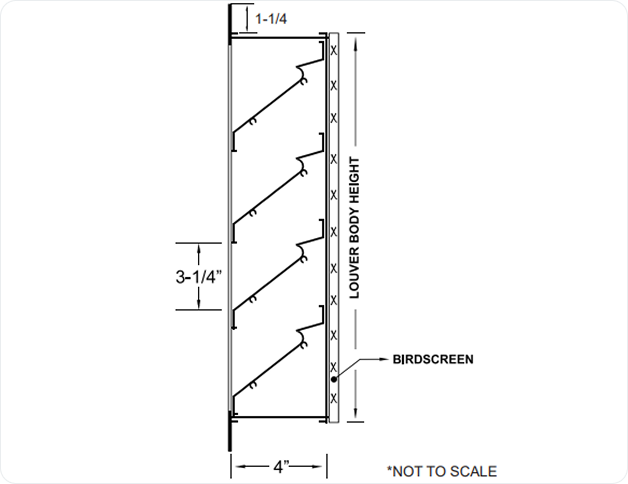

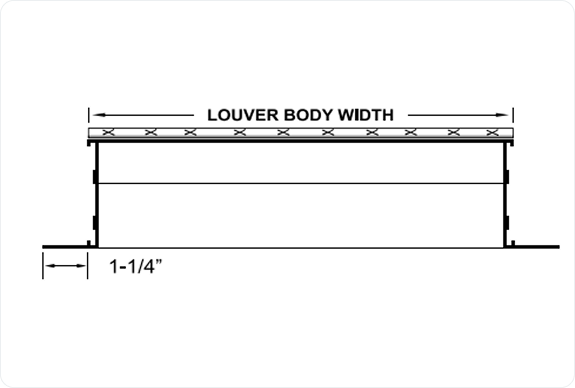

Depth:
4 Inches
Frame Thickness:
0.075” 6063-T5 Extruded Aluminium.
Blade Thickness:
0.075” 6063-T5 Extruded Aluminium.
Blade Centres:
3-1/2” (+/- 1/4”)
Blade Angle:
35°
Minimum Panel Size:
12” x 8”
Maximum Panel Size:
96” x 144”
Standard Finish:
Mill Aluminum Stand.

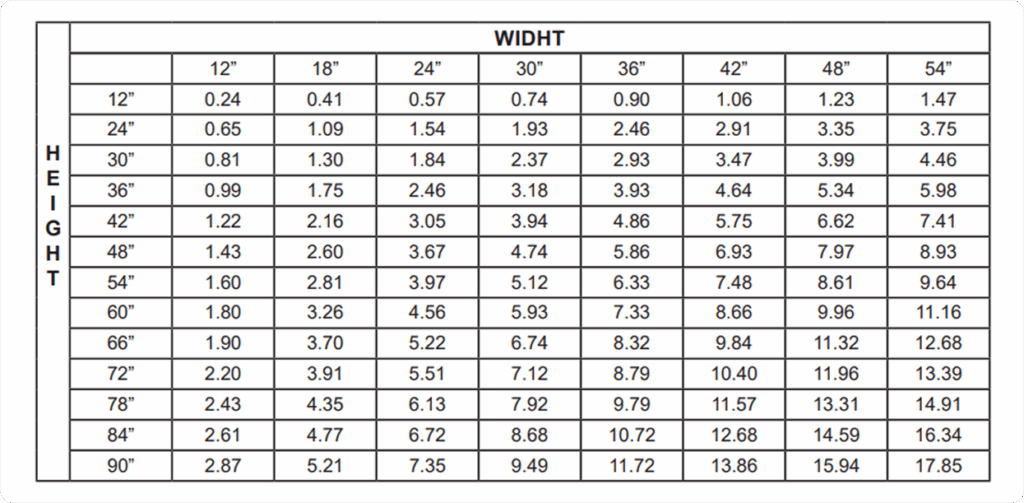

Free Area :
48”x48” Unit: 7.97 sq. ft. free area.
Free Area Percentage:
48.0 Percent

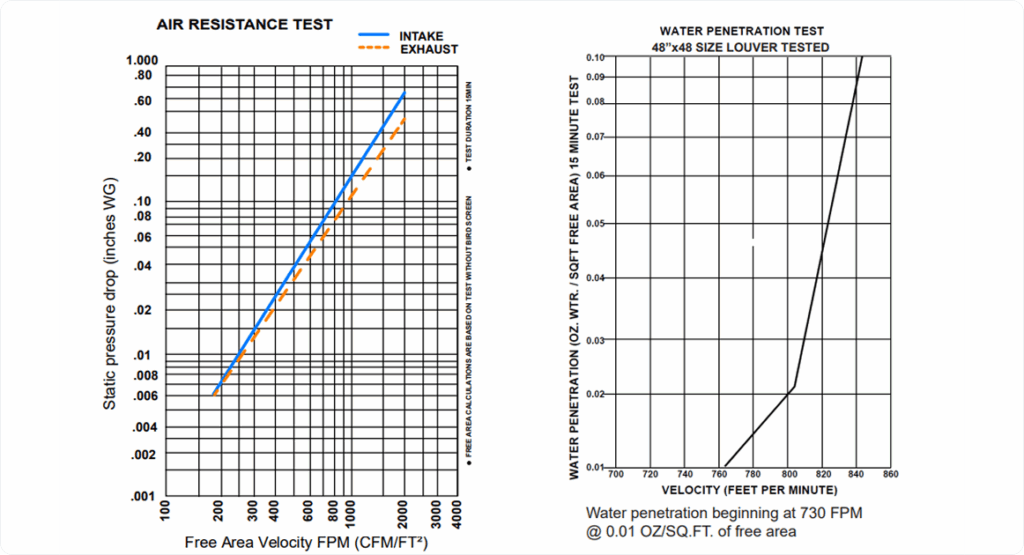

Point of Water Penetration At:
beginning point - 730 FPM @ .01oz/sq ft
Static pressure :
@ 980 FPM / 0.15 W.G.
Optional Product Features
Bird Screens:
3/4” x 0.52” Flattened Expanded Alum. (STD) | 1/4”
x 1/4” inter crimped | Aluminum. | 1/2” x 1/2” inter
crimped Aluminum.
Insect Screen:
18” x 16” mesh, .011” diameter Alum. Wire
Flange Options:
1-1/2”, 2” & 3” (FL.)
Finish:
Clear Anodized, Integral, Anodized, Baked
Coat. RAL # _________
Accessories:
Filter Track, Security Bars, Stainless Steel Screws,
Aluminum Blank Off Panel, Custom Geometric
Shapes, 1” or 2” Insulated Blank-off Panel, Extended
Sill.
Depth:
4 Inches
Frame Thickness:
0.075” 6063-T5 Extruded Aluminium.
Blade Thickness:
0.075” 6063-T5 Extruded Aluminium.
Blade Centres:
3-1/2” (+/- 1/4”)
Blade Angle:
35°
Minimum Panel Size:
12” x 8”
Maximum Panel Size:
96” x 144”
Standard Finish:
Mill Aluminum Stand.
Free Area :
48”x48” Unit: 7.97 sq. ft. free area.
Free Area Percentage:
48.0 Percent
Point of Water Penetration At:
beginning point - 730 FPM @ .01oz/sq ft
Static pressure :
@ 980 FPM / 0.15 W.G.
Bird Screens:
3/4” x 0.52” Flattened Expanded Alum. (STD) | 1/4”
x 1/4” inter crimped | Aluminum. | 1/2” x 1/2” inter
crimped Aluminum.
Insect Screen:
18” x 16” mesh, .011” diameter Alum. Wire
Flange Options:
1-1/2”, 2” & 3” (FL.)
Finish:
Clear Anodized, Integral, Anodized, Baked
Coat. RAL # _________
Accessories:
Filter Track, Security Bars, Stainless Steel Screws,
Aluminum Blank Off Panel, Custom Geometric
Shapes, 1” or 2” Insulated Blank-off Panel, Extended
Sill.
