Standard Product Features
Standard AISC structural steel members are sections,
depth of channel should equal to 1/12 the longest
span, 6” H channel minimum.
Reinforcing steel bars are ASTM-16 standard size
for 20,000 PSI stress maximum under combined
static and dynamic conditions.
Optional offset block extension bases for the
support of long radius elbow at suction. If reducers,
valves or flex connectors are used between elbow
and pump, contractor to advise prior to fabrication.

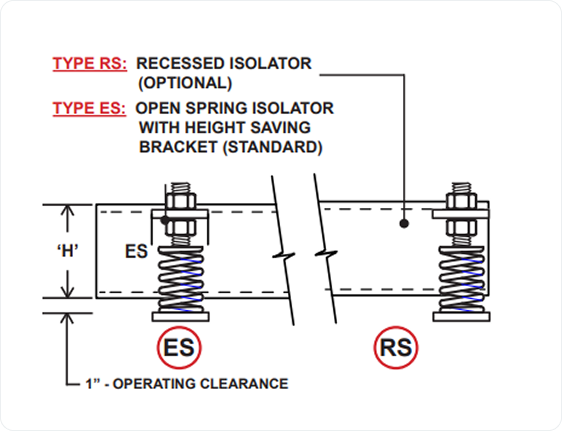

Optional Product Features

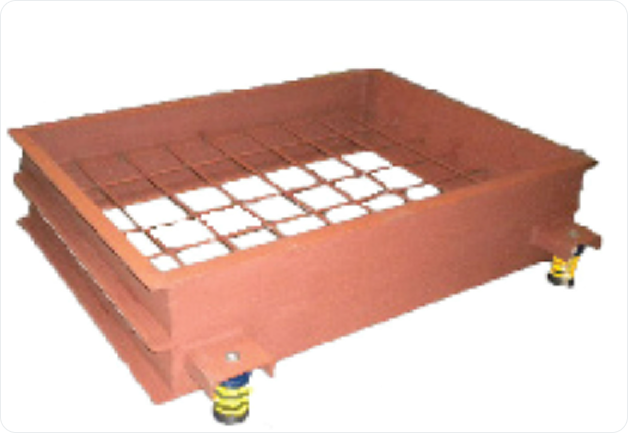

Structural Channel Pouring Form

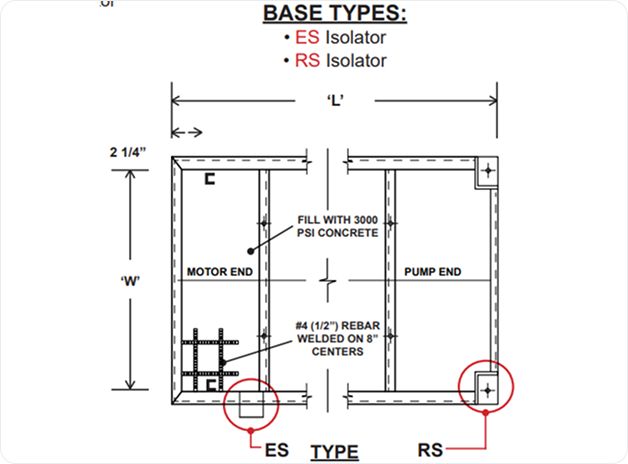

Rebar Welded in Place 8” O/C
Templates Welded in Place IF Required
Adjustable Anchor Bolts
Optional Corrosion Resistant Finish
Standard AISC structural steel members are sections,
depth of channel should equal to 1/12 the longest
span, 6” H channel minimum.
Reinforcing steel bars are ASTM-16 standard size
for 20,000 PSI stress maximum under combined
static and dynamic conditions.
Optional offset block extension bases for the
support of long radius elbow at suction. If reducers,
valves or flex connectors are used between elbow
and pump, contractor to advise prior to fabrication.
Structural Channel Pouring Form
Rebar Welded in Place 8” O/C
Templates Welded in Place IF Required
Adjustable Anchor Bolts
Optional Corrosion Resistant Finish
