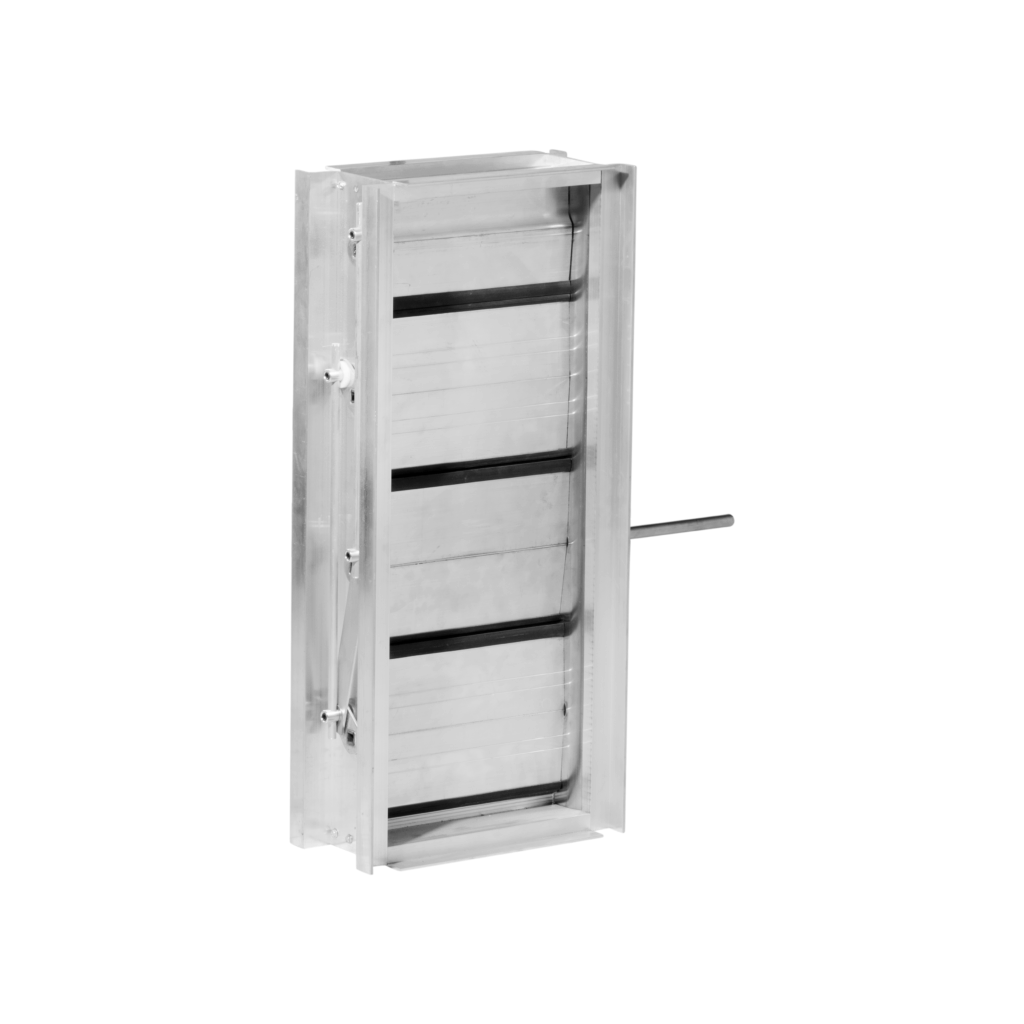

Standard Product Features
Depth: 5-1/2 Inches
Depth with Blades Open: 7”
Minimum Height: 8” - Single Blade
15” - Multiple Blade
Maximum Panel Width: 48”
Maximum Panel Height: 60”
Maximum Panel Size: 20 Sq.Ft.
Maximum System Pressure: 4” w.g. (1kPa)
Operating Temperature Range: -40° To +180° F
Standard Finish: Mill
Standard Motor Inst.: 6” Side Shaft Direct Drive
Linkage: Concealed in Frame (STD) Outside of Frame
Control Shaft: 6” x 1/2” Diameter
Optional Product Features
Stainless Steel Jamb Seal
Actuators [Honeywell, Belimo]
End Switch for signaling peripheral devices
Jack Shaft
Hand Quadrants
Chains operation for manual operation
Available finish: Clear Anodized
Face & Bypass mixing damper assembly
Depth: 5-1/2 Inches
Depth with Blades Open: 7”
Minimum Height: 8” - Single Blade
15” - Multiple Blade
Maximum Panel Width: 48”
Maximum Panel Height: 60”
Maximum Panel Size: 20 Sq.Ft.
Maximum System Pressure: 4” w.g. (1kPa)
Operating Temperature Range: -40° To +180° F
Standard Finish: Mill
Standard Motor Inst.: 6” Side Shaft Direct Drive
Linkage: Concealed in Frame (STD) Outside of Frame
Control Shaft: 6” x 1/2” Diameter
Stainless Steel Jamb Seal
Actuators [Honeywell, Belimo]
End Switch for signaling peripheral devices
Jack Shaft
Hand Quadrants
Chains operation for manual operation
Available finish: Clear Anodized
Face & Bypass mixing damper assembly

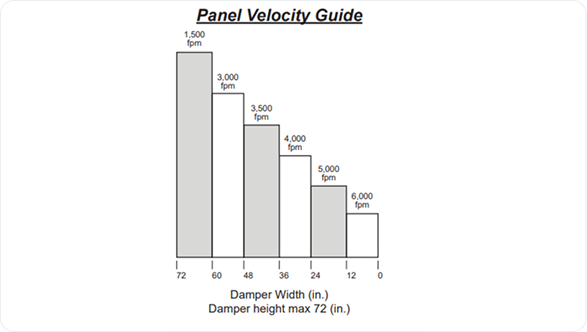

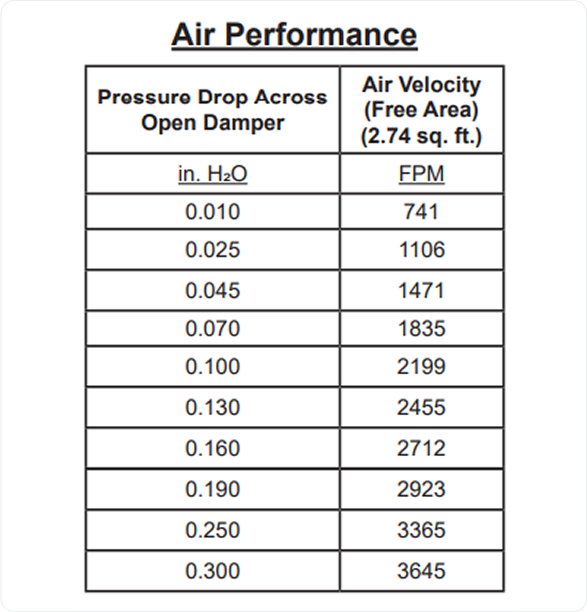

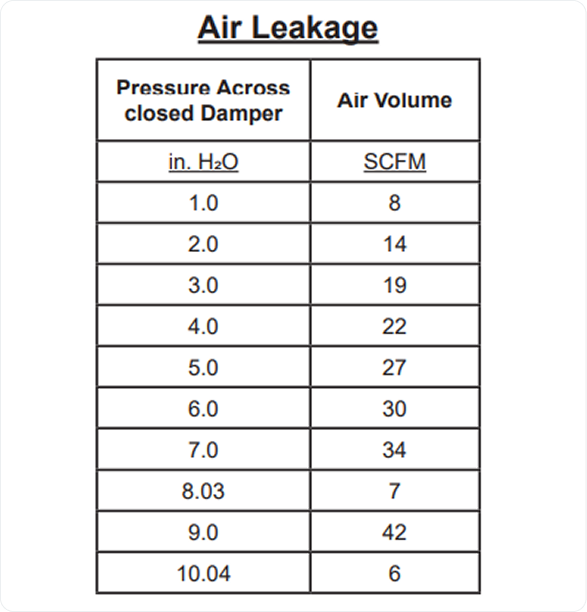

Designed and Powered by Media Depot
Please be advised that the purpose of this submittal is to exhibit the overall dimensions of this product. Pictures and drawings do not give entire detail of product and are not portrayed to scale. Tole Manufacturing reserves the right to alter this submittal without notification.
